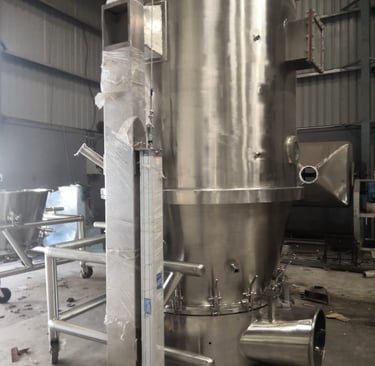

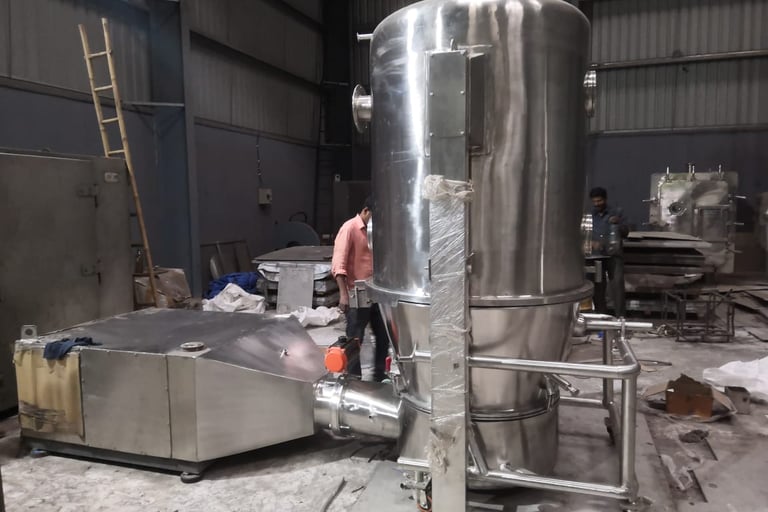

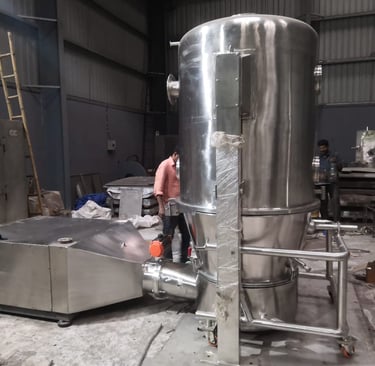

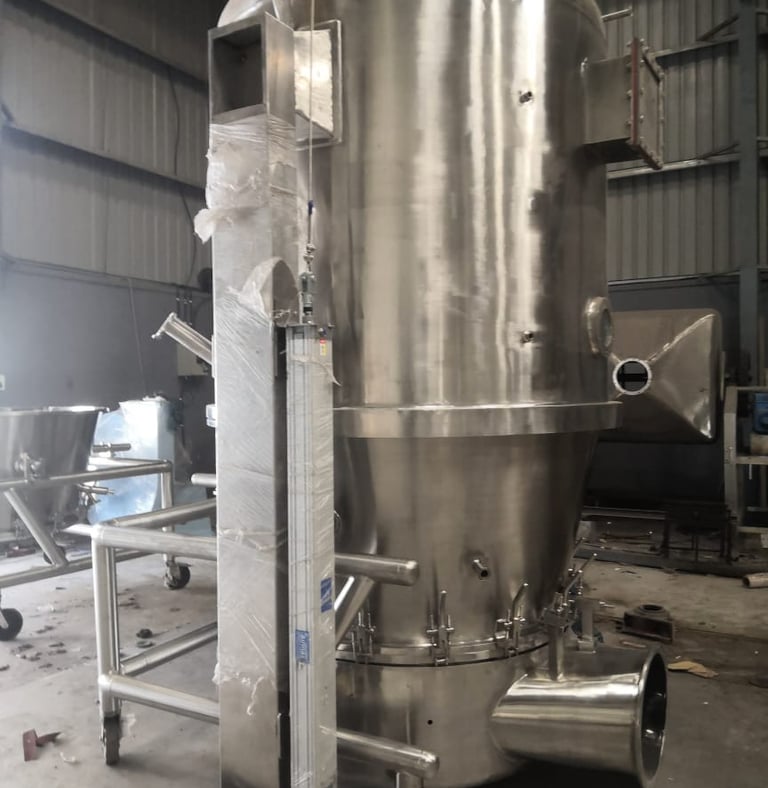

MEPL- FLUID BED DRYER:

is most suitable for drying granular, crystalline, coarse or similar materials in pharmaceuticals, fine chemicals, dyes, food & allied industries. Advantages of short drying time, uniform drying, rapid exchange of granules, low drying temperature.

OPERATION:
The wet material is introduced into the dryer as batch of material in product container which is provided with air distribution plate and dutch weave. The blower creates induced draft and fresh air is sucked into the unit. After filtration, clean air passes through heating elements. This hot air then passes through the product container creating turbulence in the product and hence the product moves up & down in the product container. Due to this the heat transfer is quick and the product is dried fast appreciable loss of heat. Filter bags prevent particles escaping from dryer.

HEATING:
Fluid bed dryers can be supplied in electric heating, steam heating or hot water / oil circulation system. Generally dryers bigger than MFD-60 are incorporated with Steam heating system, as steam heating is more economical.

SAFETY:
FBD is provided with explosion flap and pressure relief valve, in case of excess pressure the pressure is relived through the explosion vent located on the rear / top of the unit.

DRYING TIME:
The drying time depends upon various factors such as physical properties of material, moisture (free moisture or water of crystallization), drying temperature etc,. Generally pharmaceutical granules or crystals containing free moisture of about 20 to 25% can be easily dried in about 30 to 40 minutes at a temperature of about 80C.

FEATURES AND OPTIONALS:

• Single piece stainless steel construction as per cGMP standards

• Contact parts in SS316

• Inspection window on product container and processing chamber

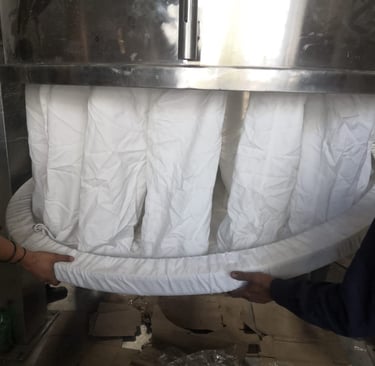

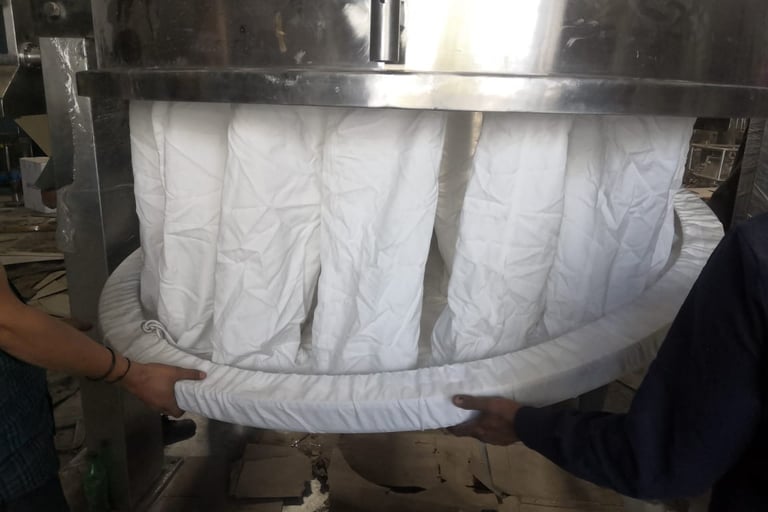

• Filter bag & Product Container sealing arrangement by means of inflatable tube.

• Filter bags cleaned by automatic shaking

• Differential pressure gauges for measuring differential pressure across inlet filters & filter bags

• Pneumatically operated exhaust air control damper (for control of fluidisation)

• CIP System for washing down during product changes

• Fully sealed air control damper with positioner for accurate air monitoring

• Air filtration supplied with HEPA filters

• Online sampling facility

• Solid particle sensor to sense the powder leakage through bag and through which in turn stops the machine

• Interlocking between filter bag sealing tube, blower motor and exhaust butterfly valve.

• FLP rotor (for Blower) & Electrical * PLC Control System.

• Silencer for Blower.

TECHNICAL SPECIFICATIONS:
