MEPL- VACUUM TRAY DRYER (VTD):

It is suitable for drying of thermal sensitive materials easily resolved, polymerised or deteriorated under higher temperature. Sterilisation can be conducted prior to the drying process, during which no matter is allowed to enter the product. Static vacuum dryer eliminates the configuration damage of the drying materials, there fore widely used in pharmaceutical, chemicals and foodstuff etc.

SALIENT FEATURES/MOC(in GMP Model)

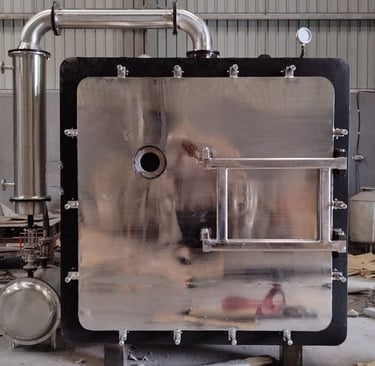

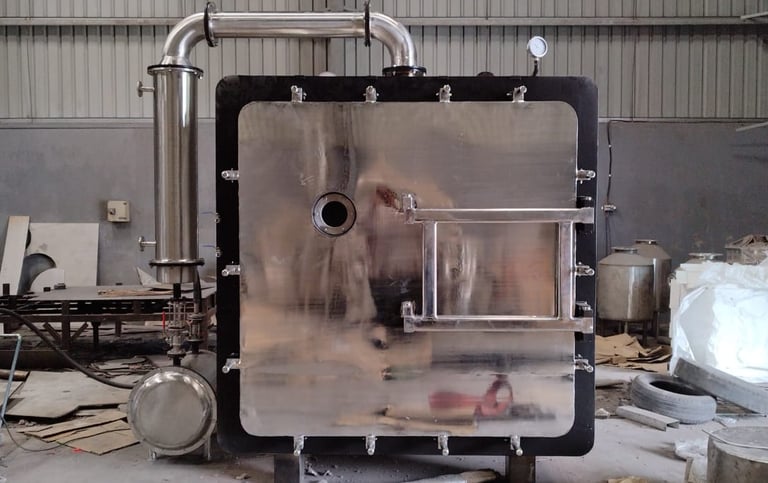

• Main body/vacuum chamber SS316 with heavy duty SS316 flange and stiffeners.

• Door SS316(hemisphere shape) with heavy duty SS316 flange.

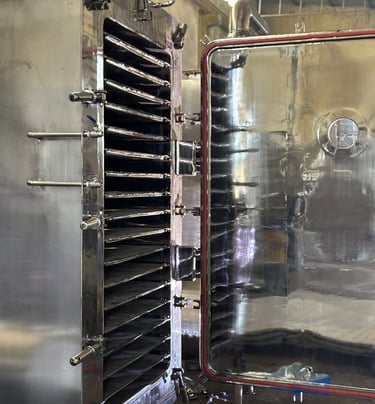

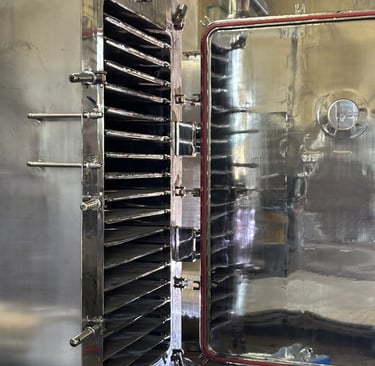

• Shelves hollow type pads SS316 with flow baffles.

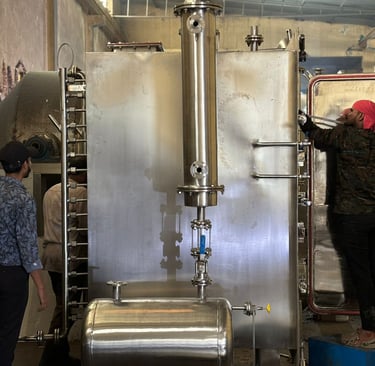

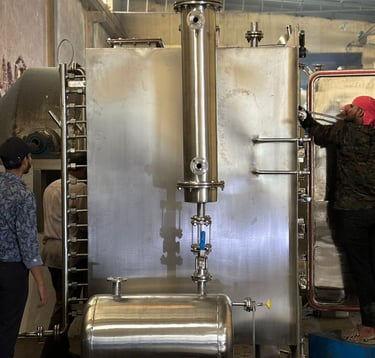

• Condenser(shell&tube) and receiver in SS304 with isolation valve and flow glass in between to monitor condensation.

• Trays(without back folding) in SS316 rounded corners and edges.

• Explosion vent/rupture disc on vacuum chamber.

• Digital temperature controller (FLP) with solenoid controlled Pneumatic operated valve at hot water inlet.

• Provision for validation port on body

• Digital temp indicator (FLP) at HW inlet&outlet.

• Dial type vacuum gauge and digital temp indicator (FLP) in vapour line.

• Pressure release valve in stream line.

• View glass/light glass provided on vacuum, chamber door, body and receiver.

• Silicon transparent gasket for door.

• Nitrogen purging valve provided on vacuum chamber.

• Vacuum break valve provided on vacuum chamber.

• Drain valve for vacuum chamber and receiver.

• TEMPERATURE ACCURACY: +_ 2 TO 3°C

  FINISH: internal 320 Grit mirror polish and outer 180 grit mat finish.

         OPTIONALS:

• Heating shelfs unit movable system fitted on SS316 Trolley and SS304 external trolley

• Condenser and Receiver in SS316 instead of SS304.

• Limpet coil on vacuum chamber

• Insulation on vacuum chamber outer surface and door. The insulation is enclosed and covered with removable SS304 panels.

• Skirting/wall panel all along the body/vacuum chamber flange

• Hot water system(steam heated) with tank (insulated) SS304 steam radiator/electrical heaters, circulation pump with FLP motor and controls.
