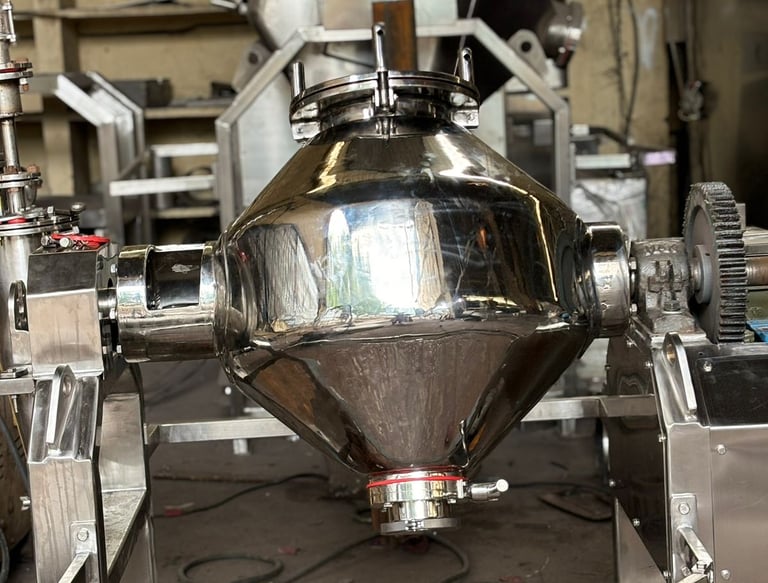

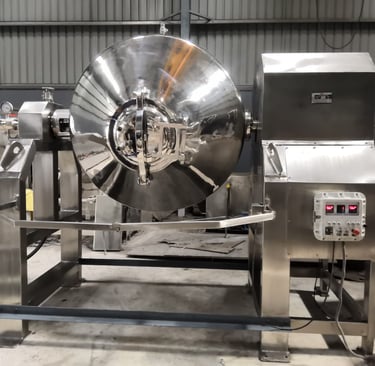

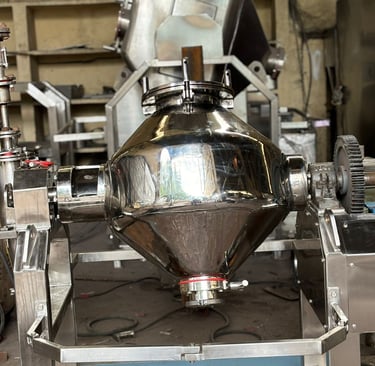

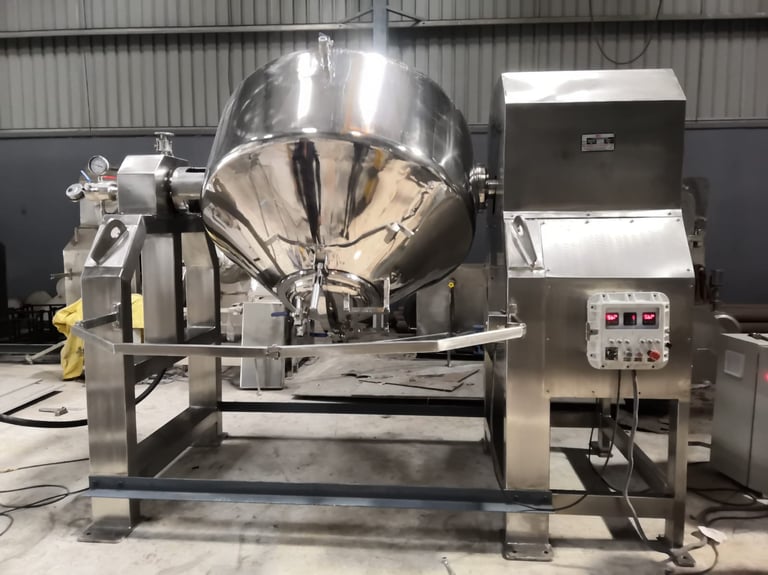

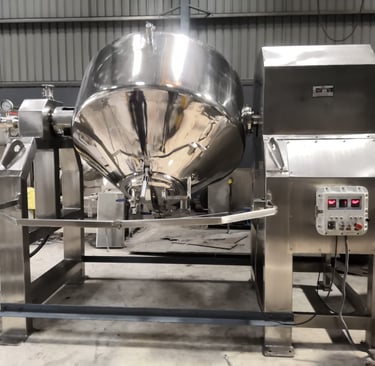

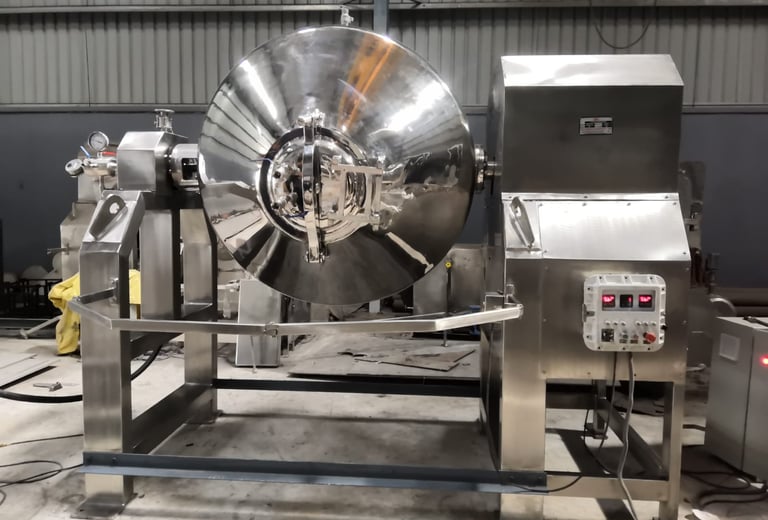

Roto Cone Vacuum Dryer is suitable for drying of materials which cannot resist high temperature, material which are easily oxidized, volatile materials which should be retrieved, materials strong irritant and poisonous in nature. The roto cone dryer with improved technology integrates during operation under vacuum. The roto cone dryer facilitates enhanced drying efficiency, low temperature operation and economy of process by total solvent recovery. It helps cGMP based working by achieving optimum dust control, while offering advantages of efficient charging and discharging of materials. The drying unit equipped with lump breakers initially breaks large lumps and subsequently powders them (in single cone). The rotary action of the dryer together with mechanical action of the breakers cuts down drying time and gives a lump free product.

ADVANTAGES:

• Reduces drying time

• Eliminates need for re-drying of lumps

• Handling and exposure of final product is avoided

• Gives uniformity of product

• System can process crystalline or amorphous powders which are prone for lumps

• Easy to clean internal surface, thus ensuring purity of product

• Optimum and continuous vacuum maintenance during process

• Uniform material shuffling over the heated contact surface of the cone

GMP Model Specifications

     Material of Construction (MOC):

• Inner Shell/Cone & Contact Parts: SS 316

• Steam/Hot Water Jacket: SS 304

• Insulation: Jacketed with SS 304

• Cyclone Separator: SS 316

• Condenser (Shell & Tube) & Receiver: SS 304

• Butterfly Valve at Discharge Port: SS 316 with Dummy & Handwheel

• Frame & Stand: SS 304/MS with SS 304 Cladding

• Mechanical Seals: Dry Type for Vacuum & Waterside

• Drive Unit: Fully Enclosed in SS 304 Covers

• FLP Motor & FLP Control panel enclosed in SS 304 panel

• Digital Temperature Indicators (FLP) at Hot Water inlet and outlet.

• Digital Temperature Indicator (FLP) and Dial Vacuum Gauge in vapor line.

• Digital Temperature Controller (FLP) with Pneumatic Valve at Hot water inlet.

• Provision for Nitrogen purging/Vacuum release with interlocking to isolation valve

• Temperature and Vacuum Gauges (Dial Type) on Cone.

• Safety Guard/railing telescopic type with limit switch (FLP) with interlocking.

• Drain plug and safety valve on HW/Steam Jacket.

• Pulse jet type dust filter is provided in side the cone.

• Positioning wheel/inching button for cone

DRIVE:

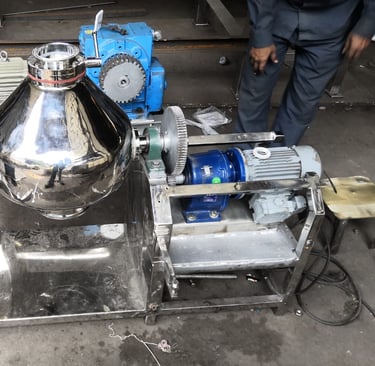

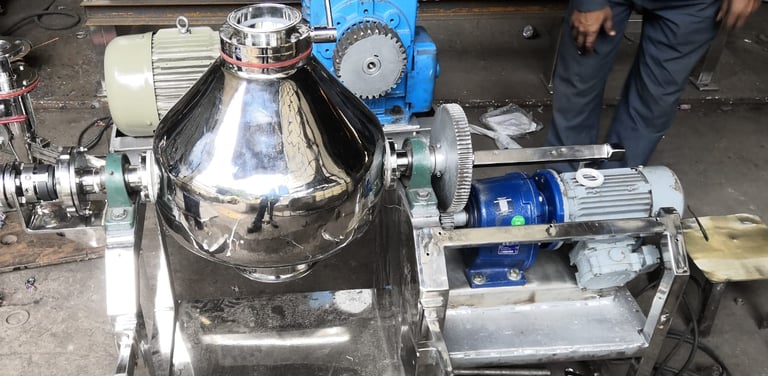

• Gear Box & Motor Direct Coupled and Gear Box to Cone Drive shaft Bull Gear-Pinion Gear Drive.

• Extended shaft (drive side) so that drive unit can be kept in service zone (if required)

• Vacuum loading system of wet material into the Cone.

FINISH:

• Internal 320 Grit Mirror Polish and Outer 180 Grit Mat Finish.

OPTIONALS:

• Cantilever (One side base) construction.

• VFD for Drive Motor with RPM indicator.

• Condenser and Receiver in SS 316 instead of SS 304.

• Lump breakers with FLP motor, Mechanical seals and electrical slipping joint.

• Auto Bin loading mechanism with timer control and Bins.

• Vacuum pump with FLP motor.

• Hot water system (steam heated) with tank and circulation pump.

Design Temperature: 200°C Testing: Full vacuum up to 750 mm of Hg & Steam/Hot water jacket side 5 Kg/cm² pressure test.

TECHNICAL SPECIFICATIONS:

MEPL- ROTOCONE VACCUM DRYER (RCVD):
